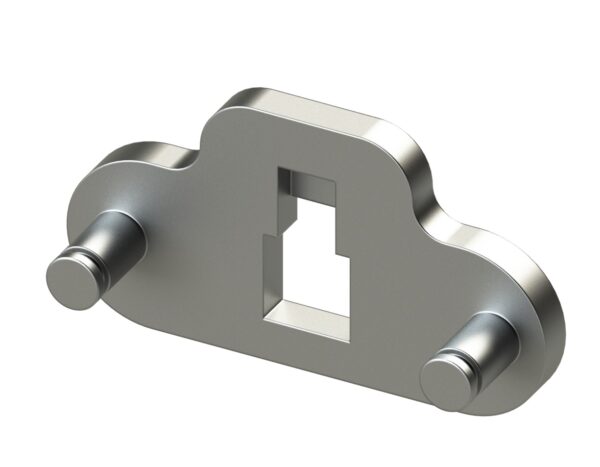

2 Point Cam
A 2-point cam that can be used as a stand alone locking mechanism or with our range of Swing Handles and Rods PR38 and PR36 to form a complete locking system.
Beschreibung
For further information and guidance on which Rods and accessories are available please see the Program Scheme or view Additional Details below.
Haben Sie Fragen?
Optionen
| Artikelnummer | Oberfläche | Anfrage |
|---|---|---|
| 2-Point Cam | Verzinkt |
Standartfunktionen
- Material: Steel
- Finish: Zinc plated
Zusätzliche Informationen
2 Point Cam technical drawing
Part Number Guide
| Fixing Hole | Pin specification | Shape |
| E | B | 1 |
 |
 |
 |
| Example | ||
| E | B | 1 |
Suitable Rods and Accessories
| Locking Mechanism | Rods (must select one) | Rod Guide | Cam Cover | Cam Adapter | Rod Adapter |
| 2-Point Cam Only | N/A | N/A | P3150 (7) | P3149 (8) | |
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) | ||||
| PR3612-L | W109-1 (16) | ||||
| PR3811-L | W109-2 (16) | ||||
| PR3801-L | W109-2 (16) | W105 (17) | |||
| PR3813-L | W108-2 (15) |
