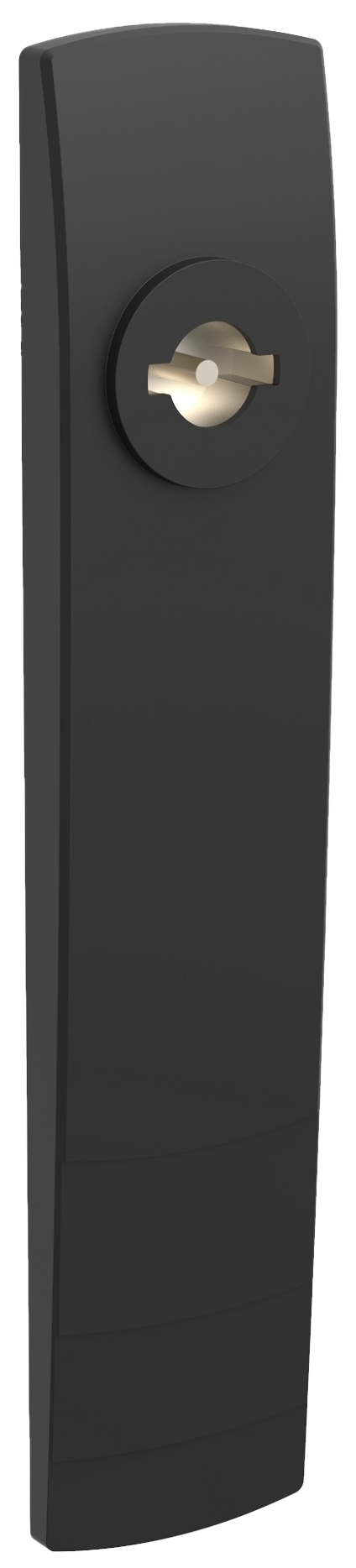

Tool Operated Short Escutcheon H802
A tool operated short length escutcheon, with the locking mechanism operable by use of a special tool, or spanner. With a polyamide 30% glass fiber body for strength and durability, the H802 is available with a number of options and choice of 1-point, 2-point or 3-point cam or rod-latch system.
Lock Options
| Product Code | Colour | Lock Type | Panel Thickness | Enquire |
|---|---|---|---|---|
| H802 | RAL 9005 Black | Spanner Barrel DB5 | 1 - 2.5 |
Standard Features
- Lock type: Spanner barrel
- Panel thickness: 1 – 2.5mm please state when ordering
- Standard finish: Black 9005 RAL
- Available with 1, 2, 3 point cam or rod-latch system: please state when ordering
- Key extraction is only possible when the lock is closed
- Longer length escutcheon also available: see Escutcheon H807
Optional features – please contact sales department to discuss
- Customised printed logo
- IP65 water resistant available on request
- UL94 V0 flame resistant available on request (minimum order quantity applies)
- Alternative colours and materials available upon request
Technical Information
Additional Information
Tool Operated Short Escutcheon H802 technical drawing
