3 Point Cams
A range of 3-point cams that can be used as a stand alone locking mechanism or with our range of Swing Handles and Rods PR38 and PR36 to form a complete locking system.
Beschreibung
For further information and guidance on which Rods and accessories are available please see the Program Scheme or view Additional Details below.
Haben Sie Fragen?
Optionen
| Artikelnummer | Oberfläche | Anfrage |
|---|---|---|
| 3-Point Cams | Verzinkt |
Standartfunktionen
- Material: Steel
- Finish: Zinc plated
Zusätzliche Informationen

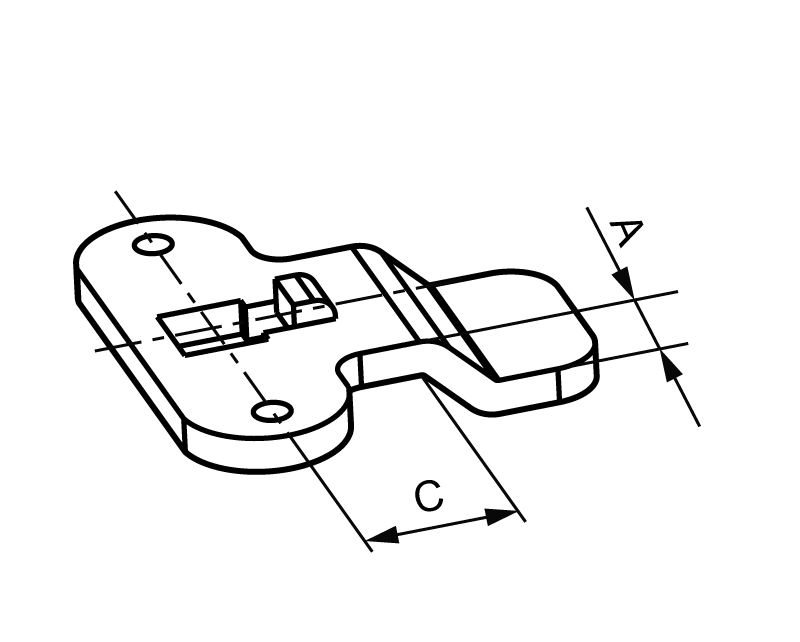

3 Point Cams technical drawing
Part Number Guide

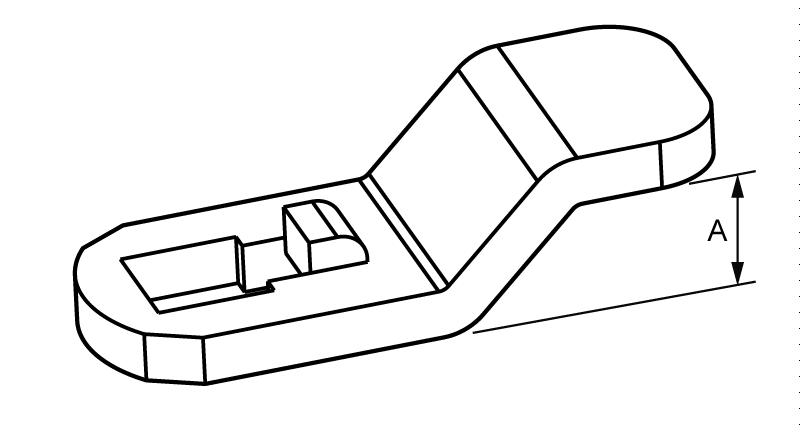

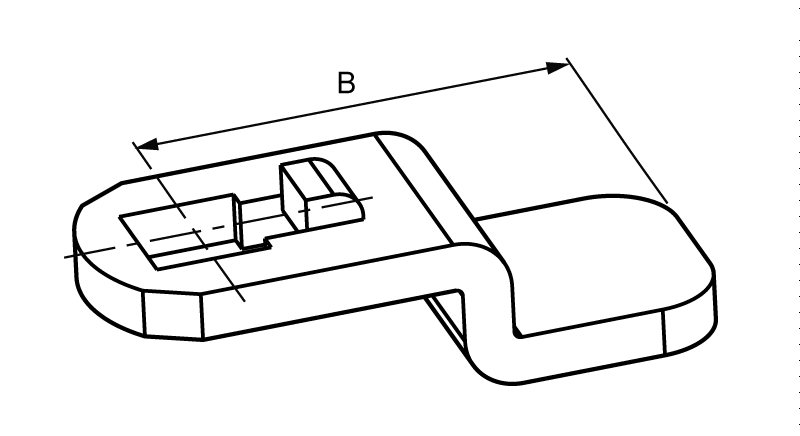

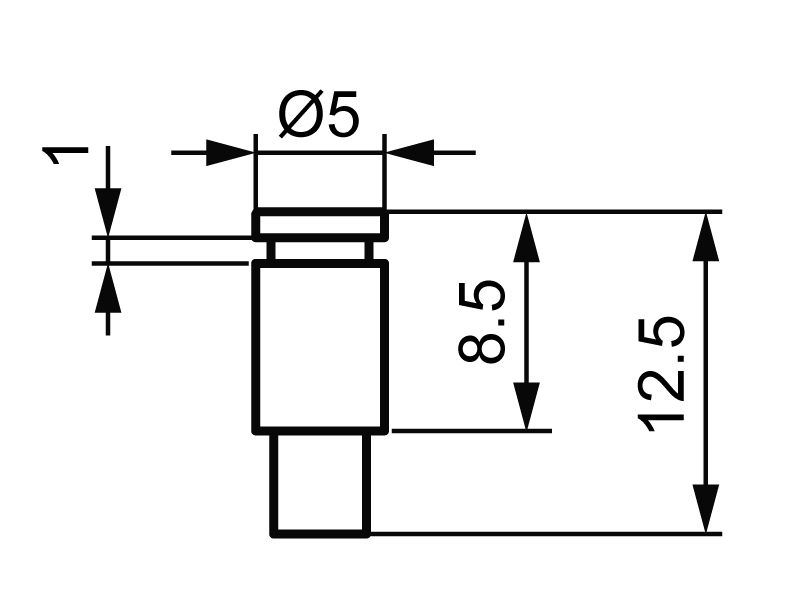

| Fixing Hole | Pin specification | Type of crank | A Dimension (mm) | B Dimension (mm) | Additional bending | ||||||||||||||||||||||

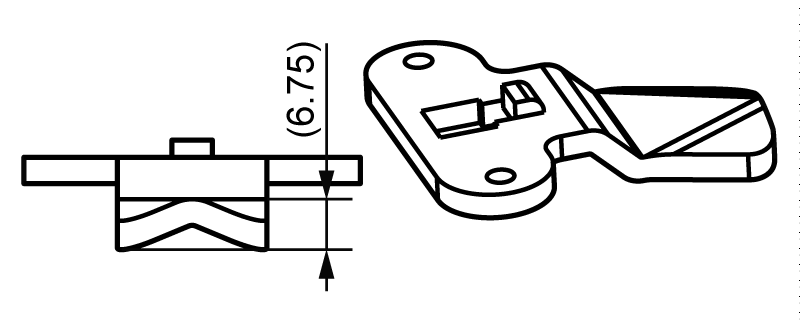

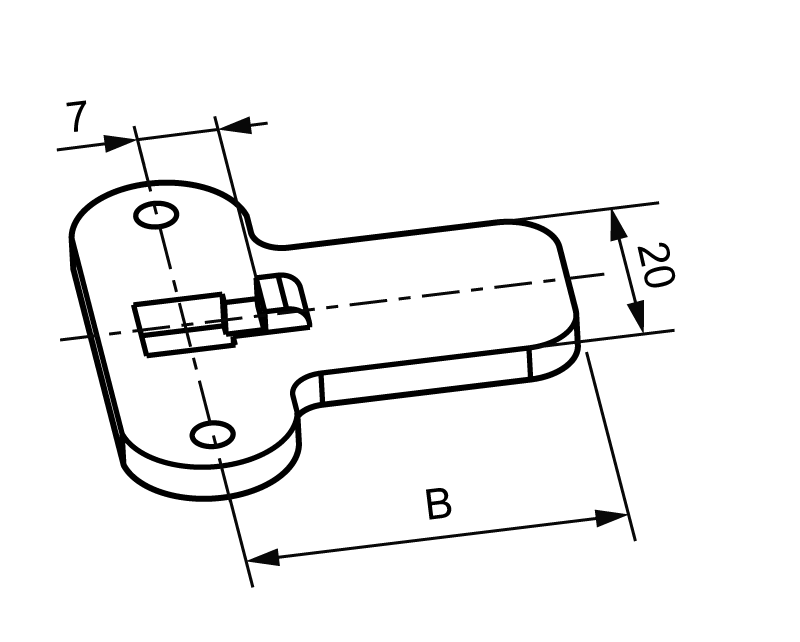

| E | B | 1 | Dim ‘A’ expressed in 1 / 64 = 0,4 mm | DB | |||||||||||||||||||||||
 |
 |
 |
 |
 |
 |
||||||||||||||||||||||

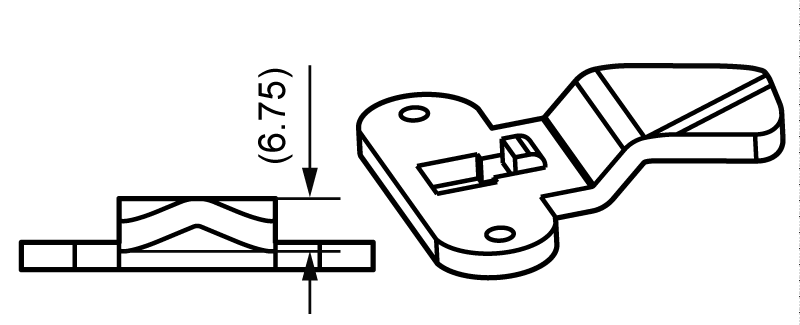

| 3 | DX | ||||||||||||||||||||||||||
 |
recommended angle 90° |
 |
|||||||||||||||||||||||||

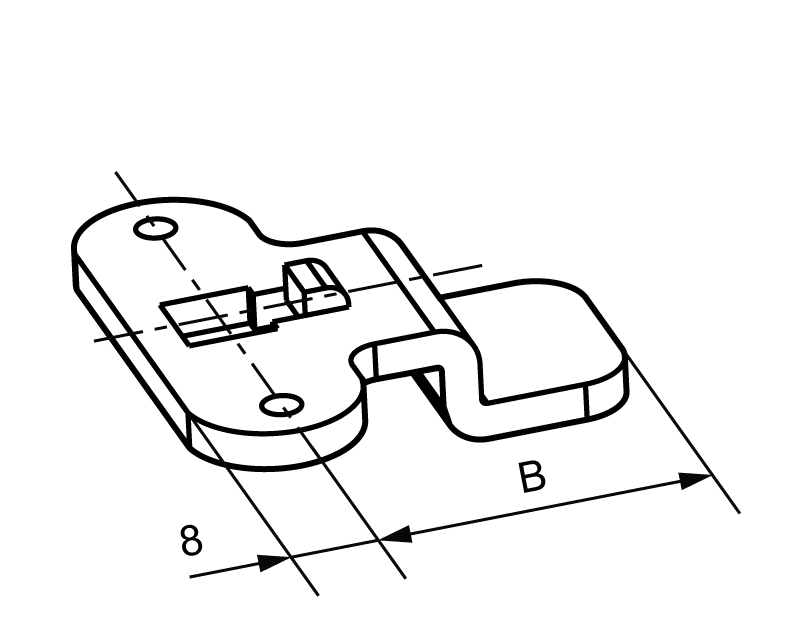

| 4 | |||||||||||||||||||||||||||
 |
NOTE: 45° crank Min B dimension 34 mm without DB or DX Min B dimension 45 mm with DB or DX NOTE: 90° crank Min B dimension 30 mm without DB or DX Min B dimension 45 mm with DB or DX |
||||||||||||||||||||||||||

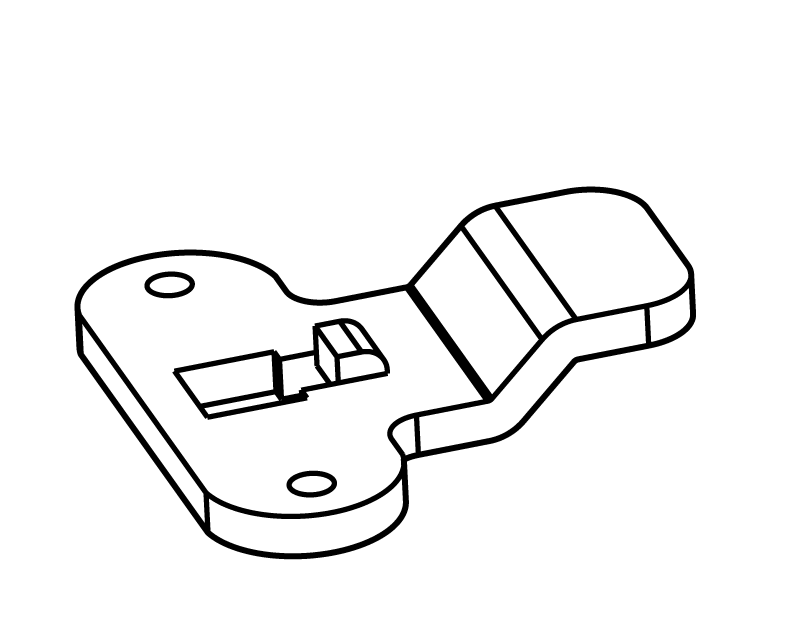

| S | |||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||

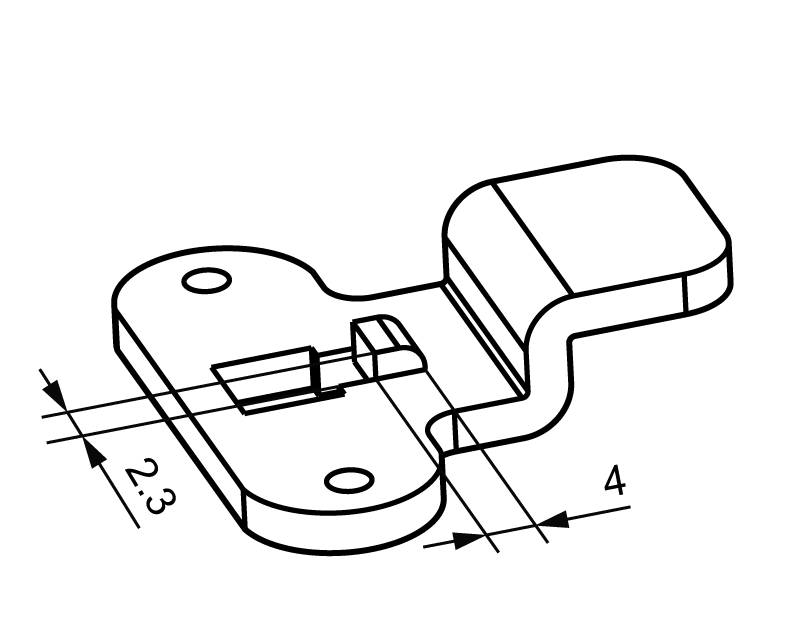

| T | |||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
| Example | |||||||||||||||||||||||||||
| E | B | 1 | 00 | 45 | DB | ||||||||||||||||||||||
Suitable Rods and Accessories
| Locking Mechanism | Rods (must select one) | Rod Guide | Cam Cover | Cam Adapter | Rod Adapter |
| 3-Point Cam Only | N/A | N/A | P3150 (7) | P3149 (8) | |
| PR3803-A-B-L | W108-2 (15) | W105 (17) | |||
| PR3611-L | W109-1 (16) | ||||
| PR3612-L | W109-1 (16) | ||||
| PR3811-L | W109-2 (16) | ||||
| PR3801-L | W109-2 (16) | W105 (17) | |||
| PR3813-L | W108-2 (15) |
