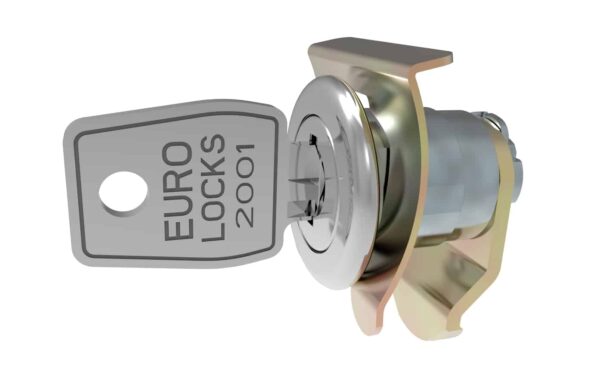

17.2mm Camlock F342
Available in 2 different body lengths, these camlocks can be capped and greased making them suitable for use in hygiene and sanitation products such as commercial soap dispensers, paper towel dispensers and electrical freshener housings.
Lock Description
These camlocks are also available with the S-Line antibacterial over moulded keys. The unique over moulding process helps fight bacteria and avoids cross contamination between multiple users of the same key.
Have a question?
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Cap | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F116 | 500 | 16.4 | 25 | 3.3 | Circlip | Stainless Steel | Round | Horseshoe Clip | ||||
| F342 | 2000 | 17.2 | 25 | 3.3 | Eclip | Capped | Olive Drab | Round | Horseshoe Clip | 1.22 – 1.63 |
Standard Features
- Standard movements: 1, 2, 3, 4, 8
- Lock Combinations: 2000
- Standard finish: Olive drab housing, stainless steel cap
- Fixing hole shape: Round with notches
- M Keyed system supplied to order only
- Dimension ‘X’ & ‘B’ Specification: See Cams
Additional Information
17.2mm Camlock F342 technical drawing
17.2mm Camlock F342 technical drawing
17.2mm Camlock F342 technical drawing
17.2mm Camlock F342 technical drawing
17.2mm Camlock F342 technical drawing
17.2mm Camlock F342 technical drawing
17.2mm Camlock F342 technical drawing
17.2mm Camlock F342 technical drawing
