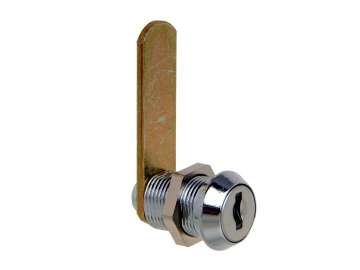

17.5mm Camlock F402
A range of 17.5mm camlocks available in chrome, ideal for many applications including Medical Furniture and Automotive.
Lock Options
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Fixing Hole Size | Head Shape | Housing Fixing | Max Panel Thickness | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F402 | 200 | 17.5 | 18 | 4.5 | Chrome | 14.2 | Conical | Nut Fixing | 12 | ||
| F404 | 200 | 17.5 | 20 | 4.5 | Chrome | 16.1 x 13.1 | Conical | Nut Fixing | 2 – 10 | ||
| F405 | 200 | 17.5 | 18 | 4.5 | Chrome | 14.2 | Conical | Nut Fixing | 12 | ||
| F406 | 200 | 17.5 | 20 | 4.5 | Chrome | 16.1 x 13.1 | Conical | Nut Fixing | 2 – 10 | ||
| F636 | 200 | 17.5 | 20 | 4.5 | Bright Chrome | 16.2 | Conical | Nut Fixing | 13.5 |
Standard Features
- Standard movements: 3, 4
- Lock Combinations: 200
- Standard finish: Chrome
- Fixing hole shape: F404 & F406 Double D; F402 & F405 Round
- M Keyed system supplied to order only
- Comprehensive range of cams available: See Cams
Additional Information
17.5mm Camlock F402 technical drawing
17.5mm Camlock F402 technical drawing
17.5mm Camlock F402 technical drawing
17.5mm Camlock F402 technical drawing
17.5mm Camlock F402 technical drawing
17.5mm Camlock F402 technical drawing
17.5mm Camlock F402 technical drawing
17.5mm Camlock F402 technical drawing
