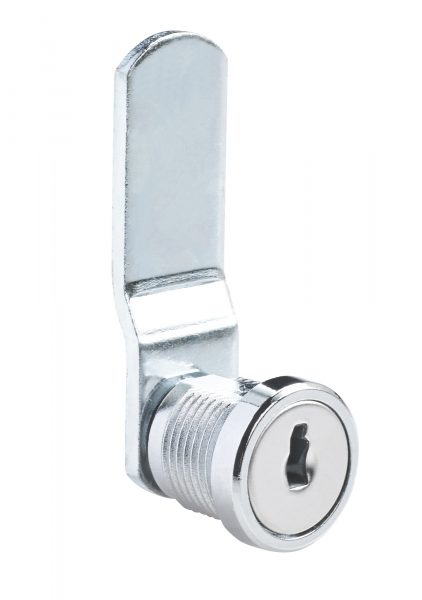

11.75mm Camlock D056
A 11.75mm camlock suitable for use in sanitation and hygiene products such as liquid and foam soap dispensers and paper towel containers. This durable camlock can be fitted flush with the surface of the container making them secure and ideal for use in offices and retail environments.
Vergrendel opties
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Head Shape | Housing Fixing | Max Panel Thickness | Movement | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|
| D056 | 200 | 11.75 | 16.5 | 3.4 | Round | Nut Fixing | 6 | 8 |
Standaardfuncties
- Standard movements: 8
- Lock Combinations: 200
- Standard finish: Chrome
- Fixing hole shape: Double D
- Dimension ‘X’ & ‘B’ Specification: See Cams
Aanvullende informatie
11.75mm Camlock D056 technical drawing
11.75mm Camlock D056 technical drawing
11.75mm Camlock D056 technical drawing
11.75mm Camlock D056 technical drawing
11.75mm Camlock D056 technical drawing
11.75mm Camlock D056 technical drawing
11.75mm Camlock D056 technical drawing
11.75mm Camlock D056 technical drawing
