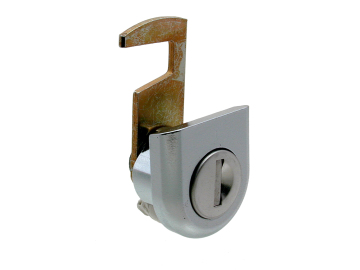

11mm or 16mm Camlock B713
A series of 11mm or 16mm camlocks available in bright chrome with a ‘D’ shaped head. These are ideal camlocks for many applications including Asset Management and Postal.
Vergrendel opties
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Finish | Housing Fixing | Max Panel Thickness | Movement | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|
| B713 | 200 | 11 | 27 | 6.9 | Bright Chrome | Horseshoe Clip | 7 | 5, 6 | ||
| B880 | 75 | 16 | 27 | 6.9 | Bright Chrome | Nut Fixing | 9 | 8 |
Standaardfuncties
- Standard movements: B713 – 5,6; B880 – 8
- Lock Combinations: 75-200
- Standard finish: Bright chrome
- Fixing hole shape: Double D
Aanvullende informatie
11mm or 16mm Camlock B713 technical drawing
11mm or 16mm Camlock B713 technical drawing
11mm or 16mm Camlock B713 technical drawing
11mm or 16mm Camlock B713 technical drawing
11mm or 16mm Camlock B713 technical drawing
11mm or 16mm Camlock B713 technical drawing
11mm or 16mm Camlock B713 technical drawing
11mm or 16mm Camlock B713 technical drawing
