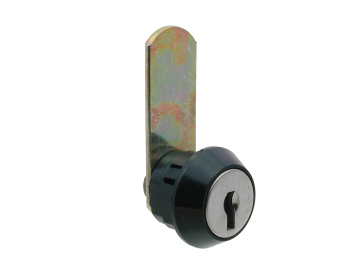

11mm Camlock B735
A series of 11mm camlocks available in bright nickel with a black plastic housing. These camlocks are ideal for many applications including Asset Management and Enclosures.
Vergrendel opties
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | Cam Fixing | Finish | Head Shape | Housing Fixing | Max Panel Thickness | Movement | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B735 | 200 | 11 | 24 | 6.9 | Circlip | Bright Nickel | Conical | Snap In Fix | 1 – 1.2 | 1 | ||
| B764 | 200 | 11 | 24 | 6.9 | Circlip | Bright Nickel | Conical | Snap In Fix | 0.8 – 1 | 1 | ||
| B906 | 200 | 11 | 24 | 6.9 | Circlip | Bright Nickel | Conical | Snap In Fix | 1.35 – 1.55 | 1 |
Standaardfuncties
- Standard movements: 1
- Lock Combinations: 200
- Standard finish: Bright nickel
- Fixing hole shape: Double D
- M Keyed system supplied to order only
- Comprehensive range of Cams available: See Cams
Aanvullende informatie
11mm Camlock B735 technical drawing
11mm Camlock B735 technical drawing
11mm Camlock B735 technical drawing
11mm Camlock B735 technical drawing
11mm Camlock B735 technical drawing
11mm Camlock B735 technical drawing
11mm Camlock B735 technical drawing
11mm Camlock B735 technical drawing
