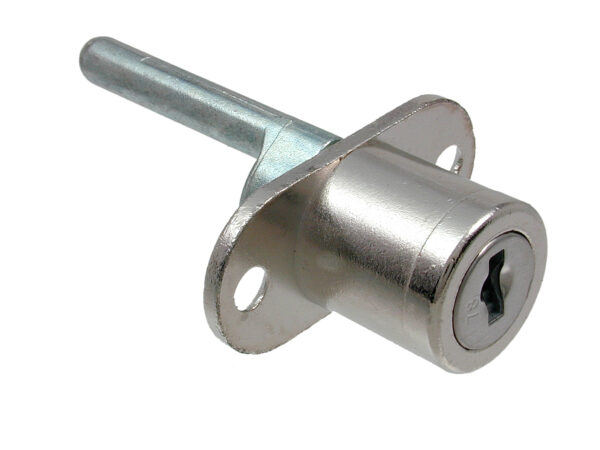

19mm-23mm Pedestal Lock 5817
A range of 19mm or 23mm Pedestal Locks available in a variety of finishes and actuator lengths. This lock is ideal for use on desk drawer units.
Vergrendel opties
| Product Code | Key Series | Combinations | Body Length | Head Width | Head Depth | A Dimension | Flange | Head Shape | Housing Fixing | Lock Fixing | Y Dimension | Enquire |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5817 | 200 | 19 | 19 | 19 | 19 | Double | Cylindrical | Screw Fix | Horizontal | 19 | ||
| 5840 | 200 | 19 | 16.5 | 19 | 16.5 | Double | Cylindrical | Screw Fix | Vertical | 19 | ||
| 5841 | 200 | 19 | 16.5 | 19 | 16.5 | Double | Cylindrical | Screw Fix | Horizontal | 19 | ||
| 5842 | 200 | 23 | 16.5 | 23 | 16.5 | Single Top | Cylindrical | Screw Fix | Vertical | 19 | ||
| 5843 | 200 | 19 | 16.5 | 19 | 16.5 | Single RH | Cylindrical | Screw Fix | Horizontal | 19 | ||
| 5844 | 200 | 19 | 16.5 | 19 | 16.5 | Single Bottom | Cylindrical | Screw Fix | Vertical | 19 | ||
| 5845 | 200 | 19 | 16.5 | 23 | 16.5 | Single LH | Cylindrical | Screw Fix | Horizontal | 19 | ||
| 5846 | 200 | 23 | 16.5 | 23 | 16.5 | Double | Cylindrical | Screw Fix | Vertical | 23 | ||
| 5847 | 200 | 23 | 16.5 | 23 | 16.5 | Double | Cylindrical | Screw Fix | Horizontal | 23 | ||
| 5848 | 200 | 23 | 16.5 | 23 | 16.5 | Single Top | Cylindrical | Screw Fix | Vertical | 23 | ||
| 5849 | 200 | 23 | 16.5 | 23 | 16.5 | Single RH | Cylindrical | Screw Fix | Horizontal | 23 | ||
| 5850 | 200 | 23 | 16.5 | 23 | 16.5 | Single Bottom | Cylindrical | Screw Fix | Vertical | 23 | ||
| 5851 | 200 | 23 | 16.5 | 23 | 16.5 | Single LH | Cylindrical | Screw Fix | Horizontal | 23 |
Aanvullende informatie
19mm-23mm Pedestal Lock 5817 technical drawing
