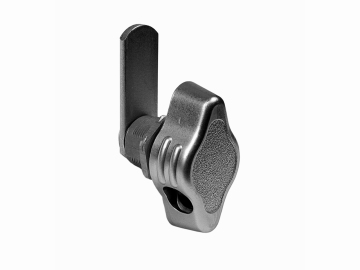

20mm Latchlock 4459
A series of 20mm latchlocks available in a number of different finishes (see below). Secured with a padlock, these locks are ideal for applications such as Lockers.
Vergrendel opties
| Product Code | Body Length | Head Height | Head Depth | Housing Fixing | Max Panel Thickness | Shackle Diameter | Enquire |
|---|---|---|---|---|---|---|---|
| 4459 | 20 | 50 | 15 | Horseshoe Clip | 12 | ||
| 4463 | 20 | 50 | 15 | Nut Fixing | 12 |
Standaardfuncties
- Standard movements: 1, 2
- Lock Combinations: Padlock
- Standard finish: Bright chrome, satin chrome, bright nickel
- Panel thickness: 12,0 mm
- Fixing hole shape: Double D
- Recommended shackle diameter: 7,0 – 8,0 mm
- Dimension ‘B’ & ‘X’ specification: See Cams
Aanvullende informatie
20mm Latchlock 4459 technical drawing
