Metal Keys
| Key Code | Key Combinations |
| B8842 | SMT001 – SMT250 |
| B8843 | SMT301 – SMT550 |
Please state when ordering
Zoek op onze website

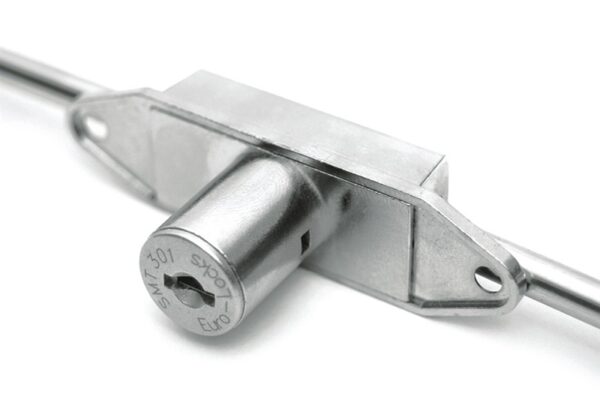

22mm Espagnolet Lock 0402
A 22mm Espagnolet Lock 0402 with a removable barrel.
Slot Beschrijving
This lock has been specifically designed with a slimline body which fits perfectly on applications such as Wooden Office Furniture.
Hebt u een vraag?
Vergrendel opties
| Product Code | Key Series | Combinations | Body Length | Head Depth | Handed | Movement | Nozzle Diameter | Enquire |
|---|---|---|---|---|---|---|---|---|
| 0402 | 500 | 22 | 2 | Right | 3 | 16.3 | ||
| 0402 B | 500 | 22 | 2 | Right | 3 | 17.8 |
Standaardfuncties
- Standard movements: 3 (180° CW)
- Nozzle diameter: 16,3 mm or 17,8 mm
- Lock Combinations: 500
- Standard finish: Bright nickel, black KTL
- Can be supplied with Master key and Sub-Master key systems
Rosettes available:
- Rosette 70080037B (16,3 mm nozzle)
- Rosette C4236 (17,8 mm nozzle)
Aanvullende informatie
22mm Espagnolet Lock 0402 technical drawing
| Product code | Description | Notes |
|---|---|---|
| A5036 – xxxx | Nickel plated rod to suit the 0402 espagnolet lock | Can be supplied in standard 1 – 2 metre lengths or cut to suit |
| B4693 | Quick fixing top hook to suit the A5036 rod | |
| B4694 | Quick fixing bottom hook to suit the A5036 rod | |
| C4062 | Rod guide to suit the A5036 rod | With noise reduction crown system |
Key Options
Capped Keys
| Key Code | Key Combinations |
| B8849 | SMT001 – SMT250 |
| B8850 | SMT301 – SMT550 |
Split Keys
| Key Code | Key Combinations |
| B8752 | SMT001 – SMT250 |
| B8765 | SMT301 – SMT550 |
General Master Key
| Key Code | |
| MAS/S04 | Opens the complete range of combinations in this series |
Sub-Master Keys
| Key Code | Key Combinations |
| SM1-04 | SMT001 – SMT250 |
| SM2-04 | SMT301 – SMT550 |
Removal Key
| Key Code | |
| B8754 | Barrel extraction key for all combinations in this series |
