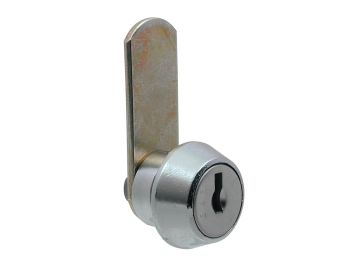

9.5mm Mini Camlock 1320

A range of 9.5mm Mini Camlocks available in Bright Chrome or Bright Nickel. Camlocks 4616 and 4617 can be shuttered and greased for greater protection when used outdoors. This makes them ideal for applications such as Automotive, Enclosures and Postal.

Aanbevolen techniek
Technische tekening
Vergrendel opties
Product Code Key Series Combinations Body Length Head Width Head Depth Finish Head Shape Housing Fixing Max Panel Thickness Version Enquire
1319 200 9.5 23.6 8.8 Bright Chrome Conical Snap In Fix 1 Standard
1320 200 9.5 23.6 8.8 Bright Chrome Conical Horseshoe Clip 5 Standard
1419 2000 9.5 23.6 8.8 Bright Chrome Conical Snap In Fix 1 Standard
1420 2000 9.5 23.6 8.8 Bright Chrome Conical Horseshoe Clip 5 Standard
4616 200 9.5 23.6 8.8 Bright Chrome Conical Snap In Fix 1 Shuttered
4617 200 9.5 23.6 8.8 Bright Chrome Conical Horseshoe Clip 5 Shuttered
4619 200 9.5 23.6 8.8 Bright Chrome Conical Snap In Fix 1 Standard
4620 200 9.5 23.6 8.8 Bright Chrome Conical Horseshoe Clip 5 Standard
4720 500 9.5 23.6 8.8 Bright Chrome Conical Horseshoe Clip 5 Standard

Aanvullende informatie

9.5mm Mini Camlock 1320 technical drawing
