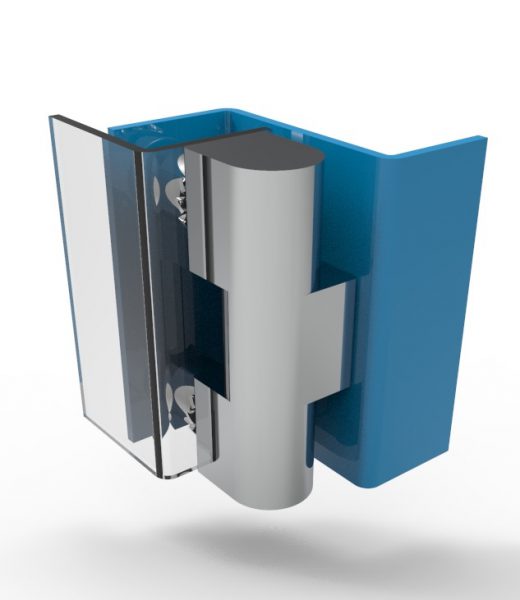

External Hinge Z300
An external hinge with a 180° maximum hinge rotation angle. The hinge is ideal for use on large enclosure doors such as cable box enclosures as it can hold the door open or closed.
Vergrendel opties
| Product Code | Material | Max Hinge Rotation Angle | Enquire |
|---|---|---|---|
| Z300 | Brass | 180° |
Standaardfuncties
- Material: Brass
- Pin manufactured from Stainless steel
- Fixing screws and washers included
Aanvullende informatie
External Hinge Z300 technical drawing
External Hinge Z300 technical drawing
External Hinge Z300 technical drawing
External Hinge Z300 technical drawing
External Hinge Z300 technical drawing
External Hinge Z300 technical drawing
External Hinge Z300 technical drawing
External Hinge Z300 technical drawing
| Product Number | Material | Optional finish | ||
| Z300 | MA
Brass |
7 B
Nickel plated |
||
| 2 A
Chrome plated |
||||
| 2 C
Satin Chrome plated |
||||
| 6 A
Zinc plated |
||||
| Example | ||||
| Z300 | MA | 2 A | ||
