Combination Lock 2800

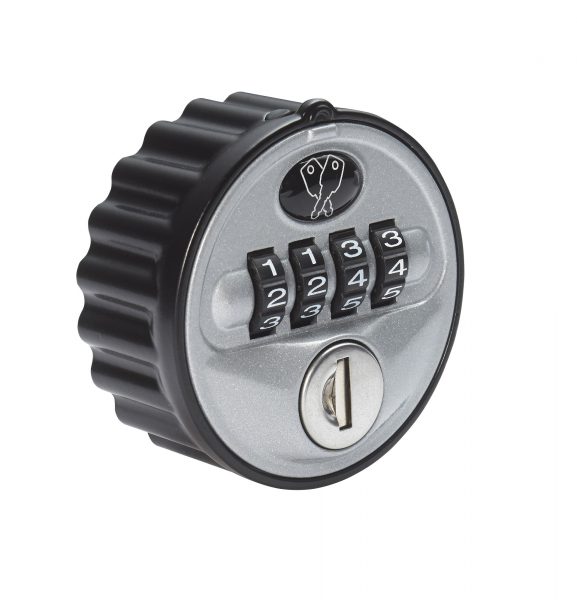

The 2800 mechanical combination lock is a 4 wheel combination lock featuring up to 10,000 unique combinations. With a robust design this combination lock is available with a range of options including single-use public mode, private mode* and wet area versions.
For added security the combination lock is also available with an optional ‘twist resist’ feature. Fitted with pan head screws, the lock offers increased resistance to forced entry as features on the rear of the lock locate in corresponding holes in the door. Customer to specify fitting option choice at time of order. For more information please see Fitting Options below.
In private mode, a simple button allows the user to set their own pin code and change it at any time, whilst the innovative code finding function allows emergency access in the event of lost or forgotten codes (operable in all modes). The high quality powder coated finish ensures maximum protection and fitting is made easy by the industry footprint.
With a sturdy design, range of options and simplicity of use this lock is suitable for a broad range of applications including lockers and office furniture.
For further information you can download a copy of our brochure. User and Installation Guides can be found in the Downloads section below.
*NOTE: User mode MUST be specified at time of order – lock CANNOT be switched between public and private mode.
| Product Code | Code Combinations | Body Length | Body Width | Body Depth | Cam Fixing | Housing Fixing | Lock Feature | Enquire |
|---|---|---|---|---|---|---|---|---|
| 2800 | 10000 | 20 | 56 | 28 | Screw | Nut Fixing | Standard |
- Versions:
- Public and private mode available
- Standard fit with countersunk screws
- Twist resist with pan head screws
- Movement:
- 1 – Right Hand (clockwise to open)
- 2 – Left Hand (anti-clockwise to open)
- Zinc die-cast construction
- Combinations: 4-Wheel combination (10,000 codes)
- Code finding feature: 10 Disc barrel with shutter cap
- Code changing function: only accessible in the un-locked position
- Finish:
- Powder coated finish
- Body – black as standard
- Face – white, silver or black as standard
- Diameter: 56 x 28mm (protrudes from door frame)
- Nut fixing: 3/4” – 27 UN x 20mm long (15.9mm A/F)
- Cam fixing: 8mm Sq. with M4 thread
- Epoxy logo badge (customer logo available on request)
Aanvullende informatie
Part Number Guide – 2800/-/-/-/–/——-
| Product Number | Operating Mode | Barrel | Movement | Cover Plate Finish | Fitting Options |
|
2800 |
V Private Mode |
0
Non-Mastered |
1
Right Hand (clockwise to open) |
1A
White |
9525001
Option 1 Standard Fit |
|
1B Black |
9525002
Option 2 Twist Resist |
||||
| 9525003
Option 3 Twist Resist |
|||||
|
L Public Mode |
5
Mastered |
2
Left Hand (anti-clockwise to open) |
1E
Silver |
9525004
Option 4 Twist Resist |
|
| 9525005
Option 5 Twist Resist |
Fitting Options
| Standard Fit |
|
|
|
|
|
|---|---|---|---|---|---|
| Product Code | 9525001 | 9525002 | 9525003 | 9525004 | 9525005 |
| Door Thickness | up to 14mm | up to 14mm | up to 14mm | 14mm – 19.5mm | 14mm – 23mm |
| Fixing Hole Details | 16A/F x Ø19 |
16A/F x Ø19 and 2 x Ø6.5 Holes or Ø19 and 2 x Ø6.5 Holes |
16A/F x Ø19 and 2 x Ø6.5 Holes or Ø19 and 2 x Ø6.5 Holes |
Ø22.5 and 2 x Ø6.5 Holes | Ø22.5 and 2 x Ø6.5 Holes |
| Kit Contents |
Standard Housing Nut *2 x CSK Screws 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Standard Housing Nut *2 x Pan Head Screws 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Standard Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Extension Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x M4 x 6 Patch Screw 1 x M4 Washer *supplied fitted to lock |
Extension Housing Nut *2 x Pan Head Screws *2 x Pan Head Spacers 1 x Cam Extension 6.25mm 1 x M4 x 12 Patch Screw 1 x M4 Washer *supplied fitted to lock |
