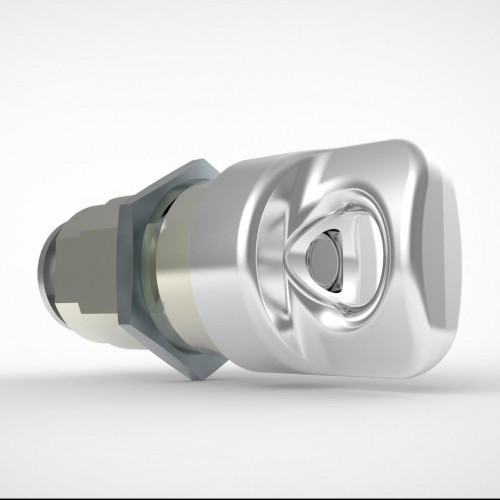

ELLO Latchlock

The ELLO latchlock brings a fresh, contemporary design to the traditional latchlock, and can also be used as a handle or knob lock. Secured with a padlock, the ELLO is extremely versatile and can be used on lockers, cabinets, general enclosures and other many other applications. With an attractive design, the ELLO is available in a variety of colours.

Aanbevolen techniek
Technische tekening
Brochure
ELLO Latchlock
ELLO Latchlock
ELLO Latchlock
ELLO Latchlock
ELLO Latchlock
ELLO Latchlock
Zamek kłódkowy ELLO
Zamek kłódkowy ELLO
Zamek kłódkowy ELLO
Zamek kłódkowy ELLO
  • ELLO Latchlock
  • ELLO Latchlock
  • ELLO Latchlock
  • Zamek kłódkowy ELLO
  • Zamek kłódkowy ELLO
Vergrendel opties
Product Code Body Length Head Width Head Depth Cam Fixing Finish Housing Fixing Max Panel Thickness Enquire
ELOH20H0S6 20 23 28 Screw Nickel Quick Fixing 0.5 – 1.8
ELOH20J0S7 20 23 28 Screw Nickel 12
ELOH32K0C6 32 23 28 Eclip Nickel 24
ELOW20H0S6 20 17 28 Screw Nickel Quick Fixing 0.5 – 1.8
ELOW20J0S6 20 17 28 Screw Nickel 12
ELOW32K0C6 32 23 28 Eclip Nickel 24
Standaardfuncties
  • Free wheel turning system
  • Body and head made in ZAMAK
  • Various fixing hole sizes (see drawing)
  • Suited for padlock loops from 5mm – 8mm
  • Standard movement: 01 (03 on request)
  • Finishes available:
Body Head
Bright Nickel Bright Nickel
Bright Chrome Bright Chrome
Bright Nickel Black
Bright Nickel White (powder coating)

Aanvullende informatie

ELLO Latchlock technical drawing

Part Number Guide

Product Number Body Lengths Piercing Shutter Cam Fixing Key Rotation Finish Lock Fixing Master
ELOW – low head  09 19.5mm – special version with 4 screws fixing – only with ELOW  K 16.6 x 19.1mm  0  N/A  C6 Cam fitted with a clip (max 2mm cam thickness)  01 90° Clockwise  7B Body and head in Bright Nickel  N Nut Fixing  0  N/A
ELOH – ergonomic head  20 20mm H 17.7 x 20.3mm (only available on snap in fixing version – ELOW/H20) S6 Cam with star piercing fixed with screw and washer 2A Body and head in Bright Chrome H Horseshoe clip (please specify panel thickness)
 32 31.7mm J 16 x 19.1mm S7 Cam with cross piercing fixed with screw and washer 8H Body in Bright Nickel and head in Black Z Snap In fixing (please specify panel thickness)
Z 23mm (only available on special version with 4 screws – ELOW09) 1A Body in Bright Nickel and head in White powder coating S Fixing with 4 screws (not supplied)
Example
ELOW 32 K 0 S6 01 7B N 0
